ELECTRICALS - Designing and new solutions for electrical components

BELL- CUP
Radial Waves Overhead Luminaire

Used short forms:

OD = Overall Diameter
HD = Head diameter
BH = Body height (without fixing falnge and lamp-shield)
OH = Overall Height
LD = Lamp-shield overall maximal diameter
TD = Arm's bracket end diameter (tenon)

NOTICE !
All dimensions are given in millimeters.

Please click here for full detail example of 'Bell-Saucer' low voltage.

1 - Common sizes of Bell- Cup Overhead

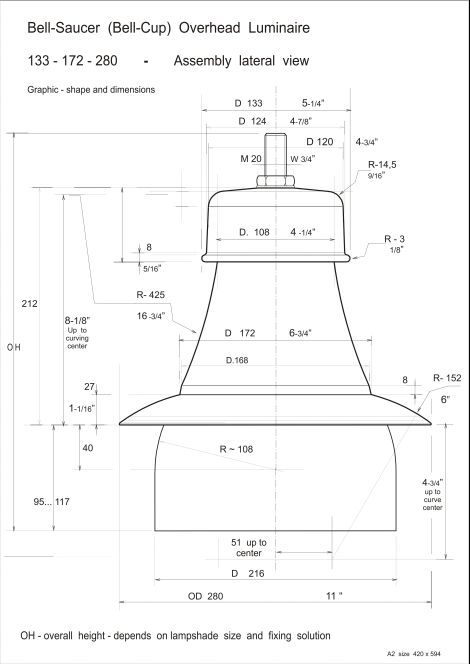

'Bell-Cup' 280-172-133 overhead.

Main dimensions:
OD=280 ; HD=133 ; TD=48...51

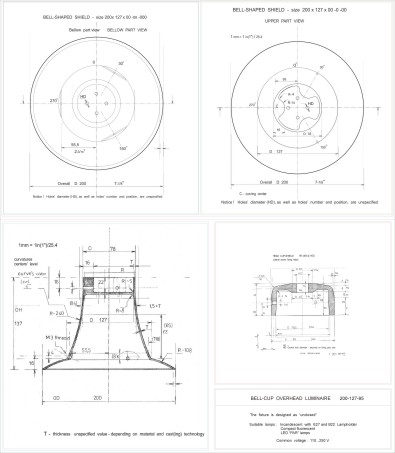

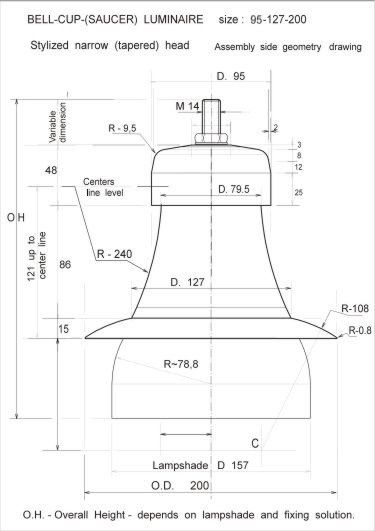

'Bell-Cup' 200-127-95 overhead.

Main dimensions: OL= 200 ; HD=95 ; TD=30...34

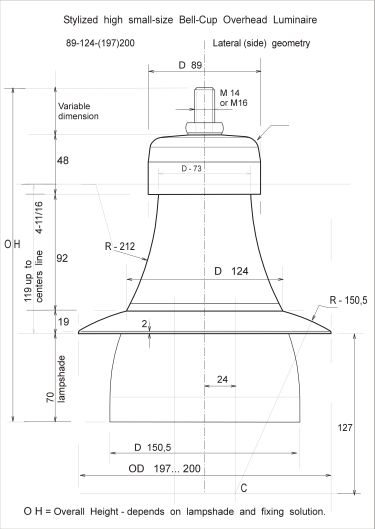

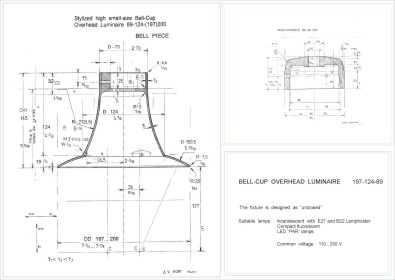

'Bell-Cup' 197-124-89 overhead.

Main dimensions: OD=197 ; HD=89 ; TD=30...34

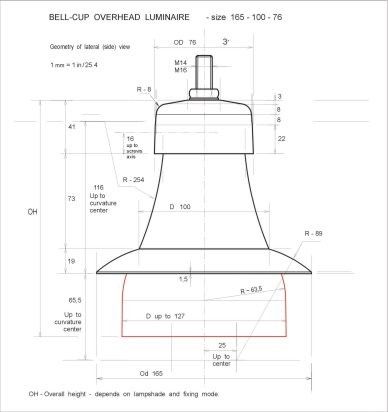

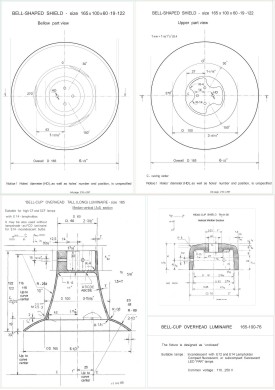

'Bell-Cup' 165-100-76 overhead.

Main dimensions: OD=165 ; HD=76 ; TD=25...27

3 - Low-voltage small Bell-(Saucer)-Cup Overhead

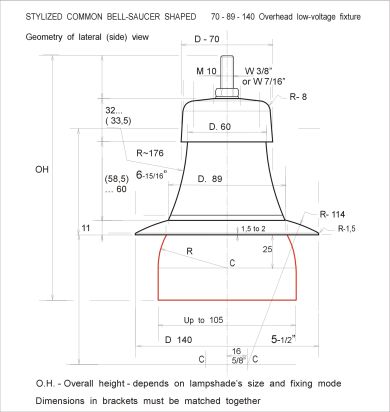

'Bell-Cup' 140-89-70 overhead.

Main dimensions:
OD=140 ; HD=70 ; TD=16...22

TERMS OF DESIGNS USAGE

The main term of mechanical drawings usage, which represents luminaries component parts, for manufacturing, is to be used as they are designed.

If our design is not suitable for your way of manufacturing, or concept, you may modify in your way - as you consider more suitable for you - only the interior (inside) part(s) (components) of the luminaries ; preserving the outside shapes and dimensions.

Any kind of changes are allowed to all components or solutions, which are hidden in the assembled luminaire.
More exactly, you have to keep the outside of luminaries untouched.

Any kind of hacking, or combinations of your own solutions, which change the outside shape and dimensions of the assembly of the luminaire, are forbidden.

The below part of 'Bell-(Cup)-Saucer' Luminaires (as body of fixture or as lampshade), may be considered as "inside", too. Therefore, any changes are allowed on all below parts, which are above the horizontal lowest plane of the saucer-shaped-shield, or on those of lampshield (inside of lampshade).

NOTICE !
Anytime, if there are more suggested values for the same dimension, the manufacturer may chose those, which he considers more suitable.
On drawings which show both dimensions' values in millimeters and inches, usually, values in millimeters are written on the left, or upside, and those in inches are mentioned on right, or down one.

Please contact us for enquiries, suggestions or comments,
and you will get more details about the exposed pieces.
