Side-arm-bracket LONG LANTERNS



Used short forms:
OL = Overall Length
OW = Overall Width
OH = Overall Height (with flat lens)
LCL= Lighting Compartment Length
LL = Lens' clear Length
LW = Lens' clear Width
TD = Arm's bracket end diameter (tenon)

NOTICE !
All dimensions are given in millimeters.



Long rounded ends side-arm lanterns

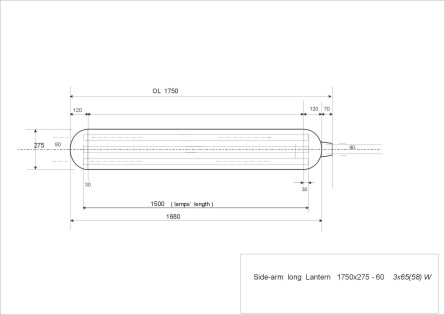

'Neon-365' closed full-cut-off long lantern
Main features:
OL=1750 ; OW=275 ; OH=125 (195) ; LCL=1680 ; TD=60
Suitable lamps : Common fuorescent tubes 58...65W (3 pieces).

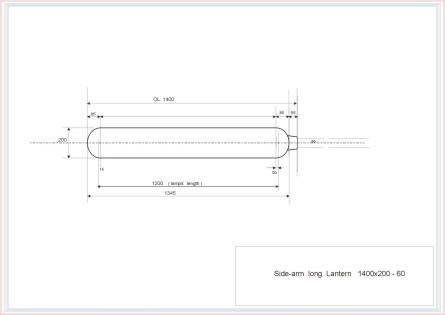

'Neon-240' closed full-cut-off long lantern
Main features:
OL= 1400 ; OW= 200 ; OH=125 (175) ; LCL= 1345 ; TD= 48...60
Suitable lamps : Common fuorescent tubes 36...40W (2 pieces); low pressure sodium (SOX).

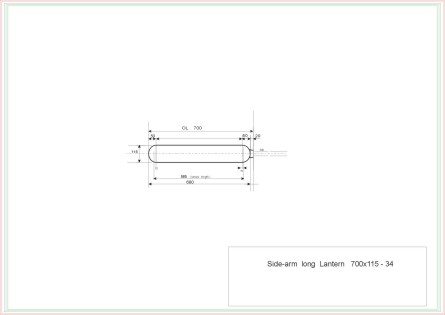

'Neon-120' closed full-cut-off long lantern
Main features:
OL=700 ; OW=115 ; OH=000 ; LCL=680 ; TD=34
Suitable lamps : Common fluorescent tubes 18...20W.


'Neon-115' closed full-cut-off long lantern
Main features:
OL=275...585 ; OW=95 ; OH=67 (87) ; LCL=245...555 ; TD=22...25
Suitable lamps : Common fluorescent tubes 14...16W ; CFL ; SCF.
